In Flight - Bus Transfer switch OFF

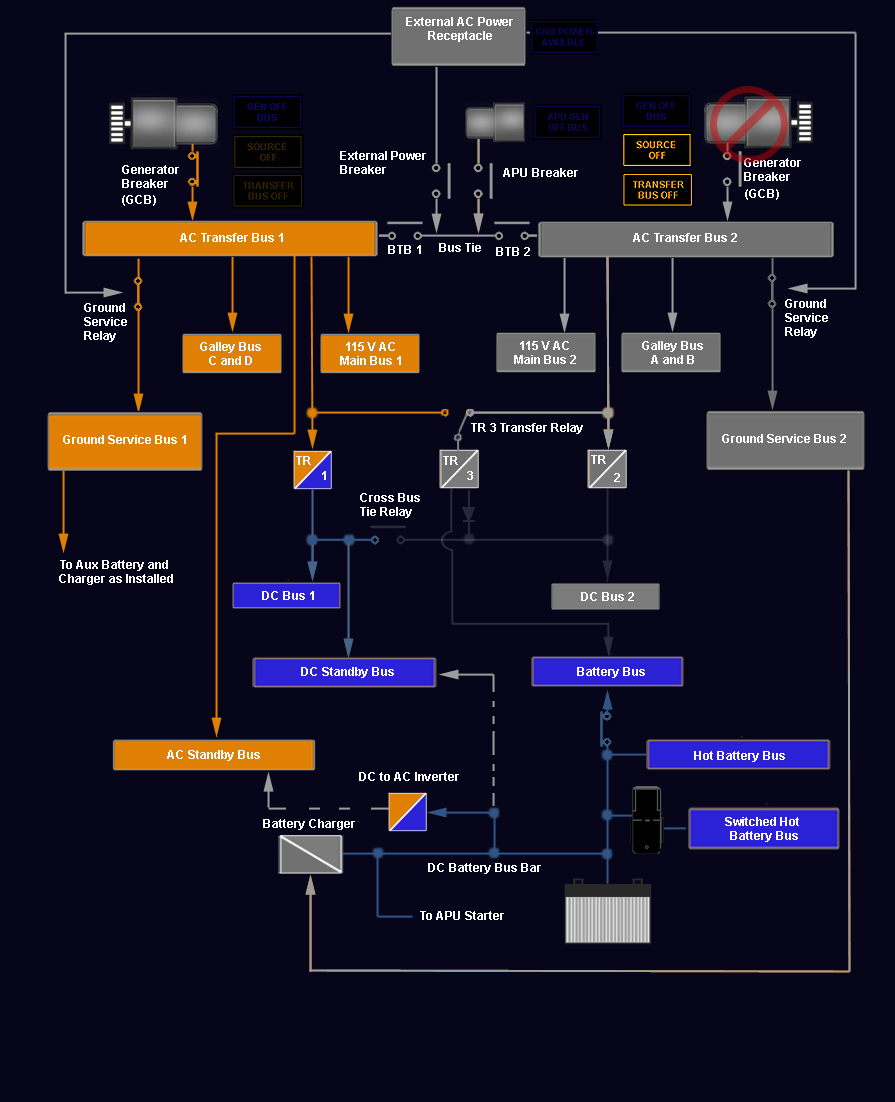

IDG 2 has failed.

  • The BTBs open and power to Transfer Bus
    2 and its associated busses is lost.

  • The right TRANSFER BUS OFF light
    illuminates.

  • TR 2 and TR 3 are unpowered and the
    Alternate Battery Relay closes powering the
    Battery Bus from the battery.
  • The AC Standby Bus is powered from its
    normal source, Transfer Bus 1.

  • The DC Standby Bus has lost backup from
    TR 2 and TR 3.

  • The Cross Bus Tie Relay opens and the
    automatic function is lost.
Moving the Bus Transfer switch to OFF in flight
is used only during some electrical abnormal
procedures.
