In Flight - Bus Transfer switch OFF

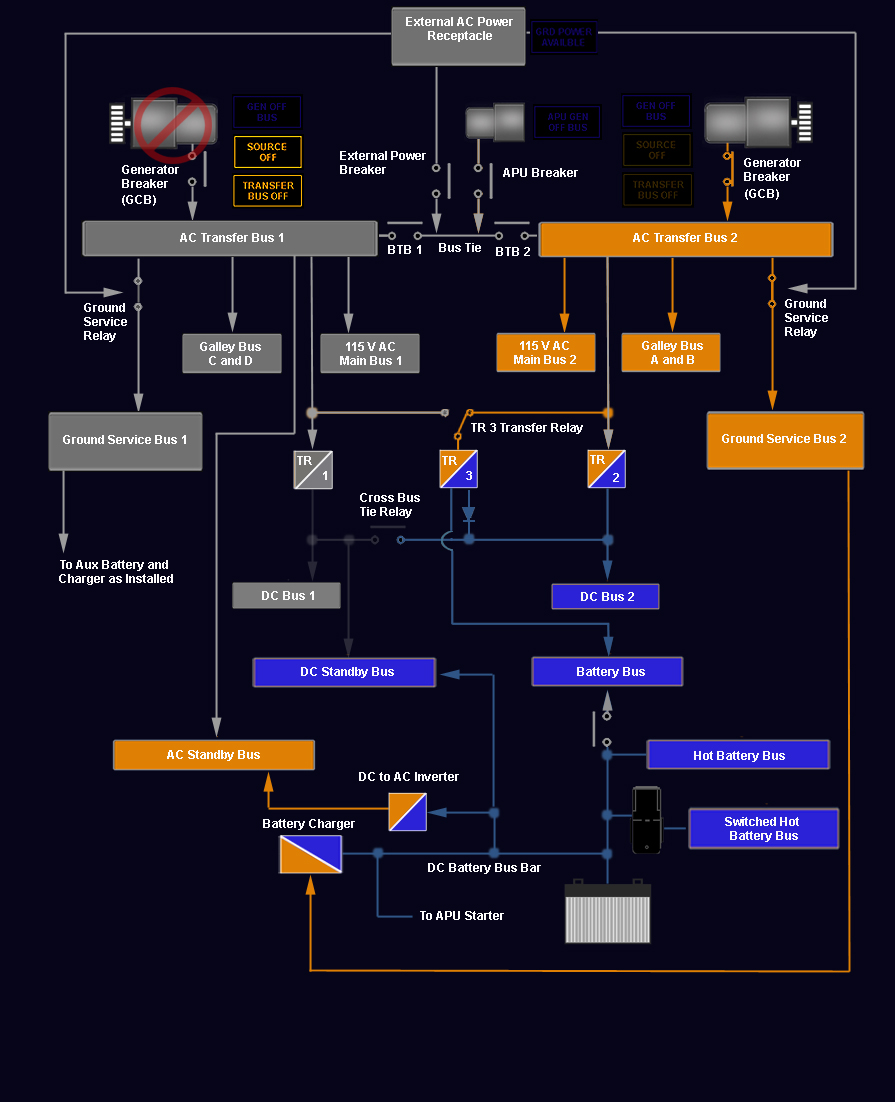

IDG 1 has failed.

  • The BTBs open and power to Transfer Bus
    1 and its associated busses is lost.

  • The left TRANSFER BUS OFF and
    SOURCE OFF lights are illuminated.

  • TR 1 and is not powered and power to DC
    Bus 1 is lost.
  • The AC Standby Bus is powered from the
    Inverter and Battery Charger

  • The DC Standby Bus is powered by the
    battery and the battery is being charged.

  • The Cross Bus Tie Relay opens and the
    automatic function is lost.
Moving the Bus Transfer switch to OFF in flight
is used only during some electrical abnormal
procedures.
Electrical System SGR
Toggle
